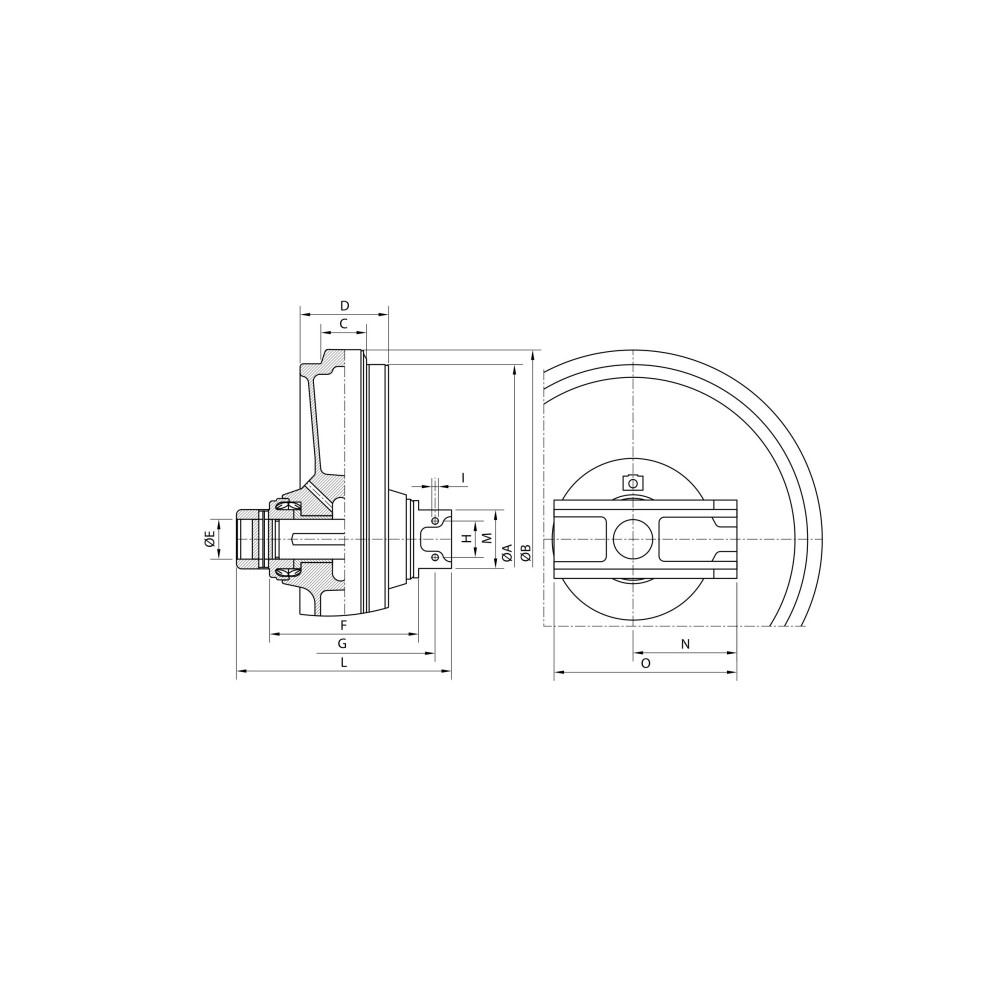

Track tensioning wheel. Width of the inner guiding flange 28mm complete with shaft.
Tensioning wheels ITR for mini excavators and compact loaders are produced using the latest automated design and production processes.

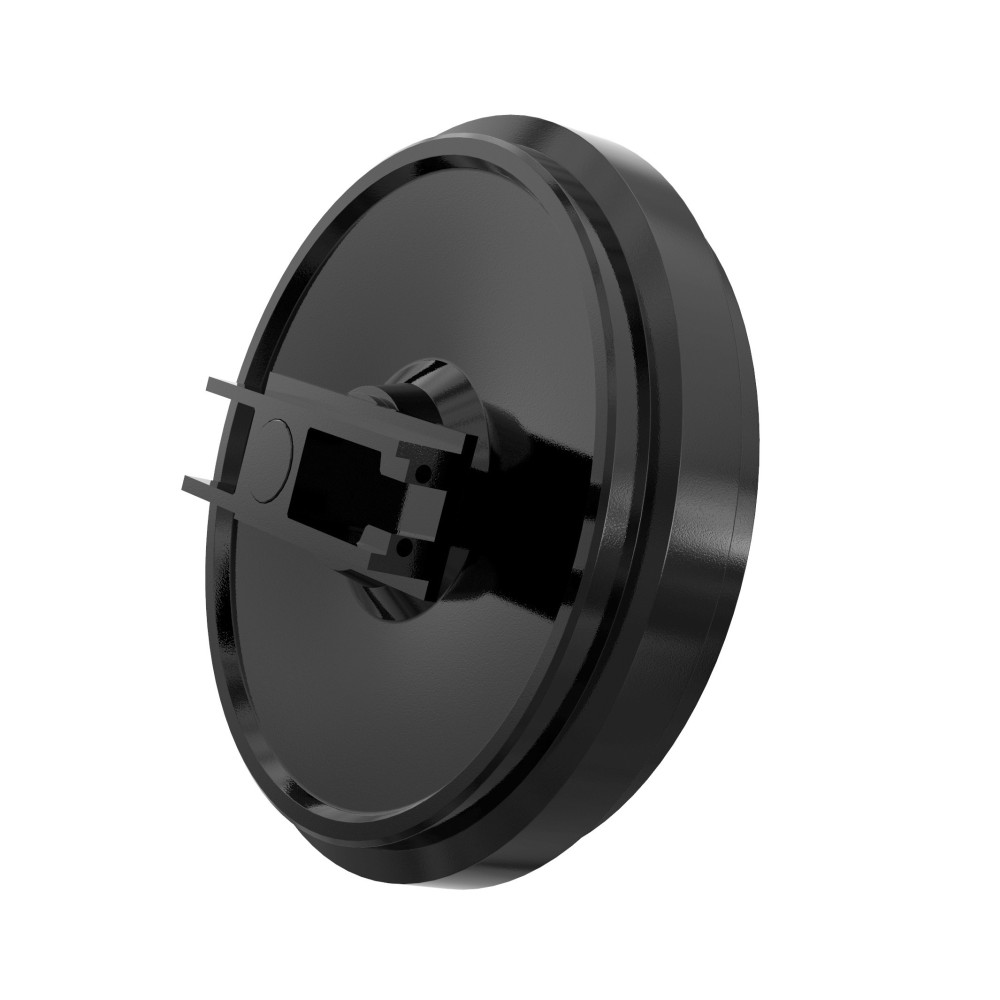

ITR Tensioning Wheel for KOMATSU PC28 UU
They are manufactured from selected high-quality steel alloys and properly heat-treated to ensure exceptional field performance in extreme working conditions. Tensioning wheels ITR are assembled using state-of-the-art seals and bearing designs, produced in compliance with the industry's most stringent specifications. Assembly is carried out on assembly lines with an automatic oil-filling process. Tensioning wheels can be selected in various configurations:
- Tensioning wheel shell
- Tensioning wheel with bushing and shaft
- Tensioning wheel with supports
- Tensioning wheel with fork
- Tensioning wheel with tensioner
Quality of ITR Tensioning Wheels
The range of tensioning wheels includes equipment from mini excavators to mining machines from KUBOTA® K008 (machine operating weight 0.9 tons) to KOMATSU® D475 A5 (machine operating weight 101 tons) Engineering and R&D departments are located in Italy, South Korea, and China and collaborate to combine know-how, technology, and development capabilities. The engineering departments located in each production facility have specific knowledge about locally produced components, while the headquarters Italian Engineering coordinates all activities.
Functionality of ITR Tensioning Wheels
The function of the tensioning wheel is to support the track chain and guide it to be properly wound. Additionally, the tensioning wheel and tensioner work together to maintain a certain degree of track tension. The most important controllable factor in undercarriage wear is correct chain tension. The correct deflection for all conventional tracks is about 50mm (+-5mm). For example, a track on an 80-horsepower machine with a 12mm deflection will have a tension value of 2540 kg when measured in the track tensioner. The same machine with a suggested deflection of 50 mm will have a tension value of 362 kg. An excessively tensioned track increases pressure, which causes greater wear on the track bushings when in contact with the sprocket teeth and in the chain-tensioning wheel-roller contact. Tread hardness equal to or greater than the chain links, running rollers, and support ensures impact resistance and balanced durability. Material type: SCMn3A, hardening 50-55 HRC. Lifetime lubrication to minimize maintenance.
