Track tensioning wheel. Width of the inner guiding flange 23mm complete with shaft.
Idler wheels ITR for mini excavators and compact loaders are manufactured using the latest automated design and production processes.

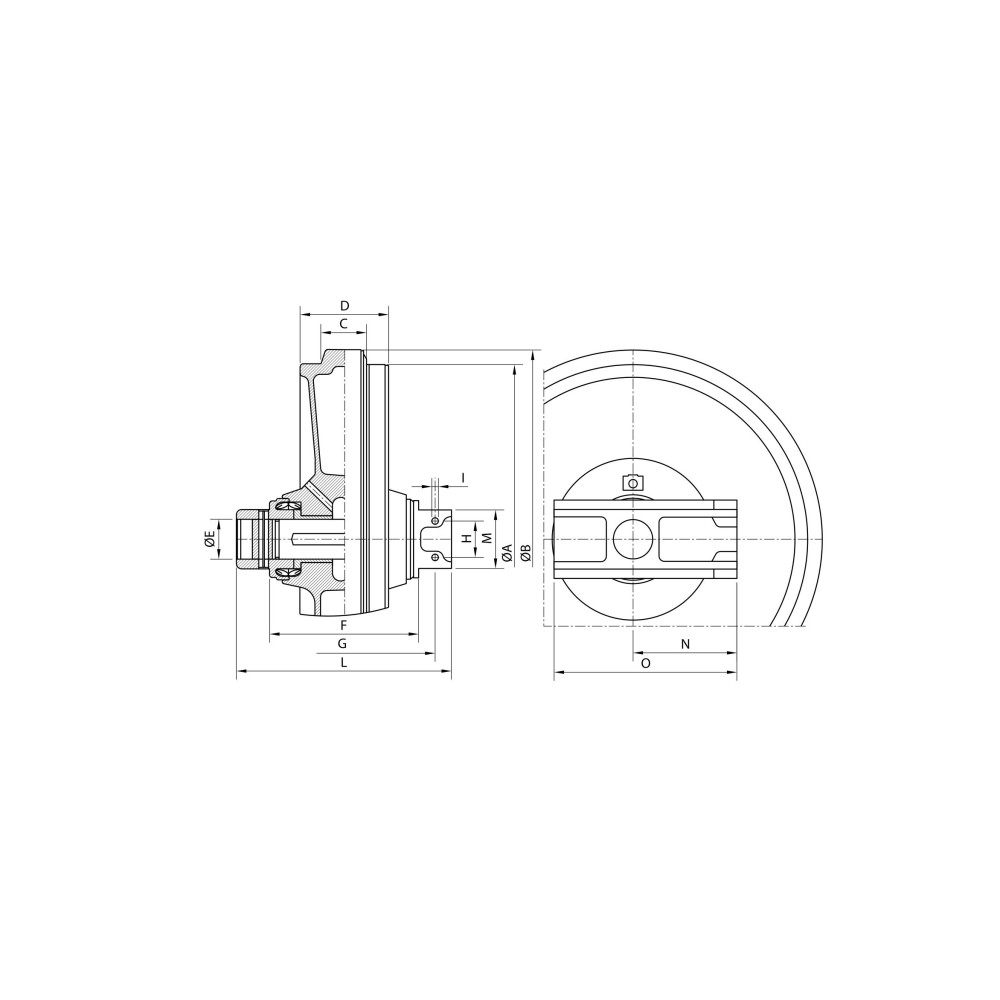

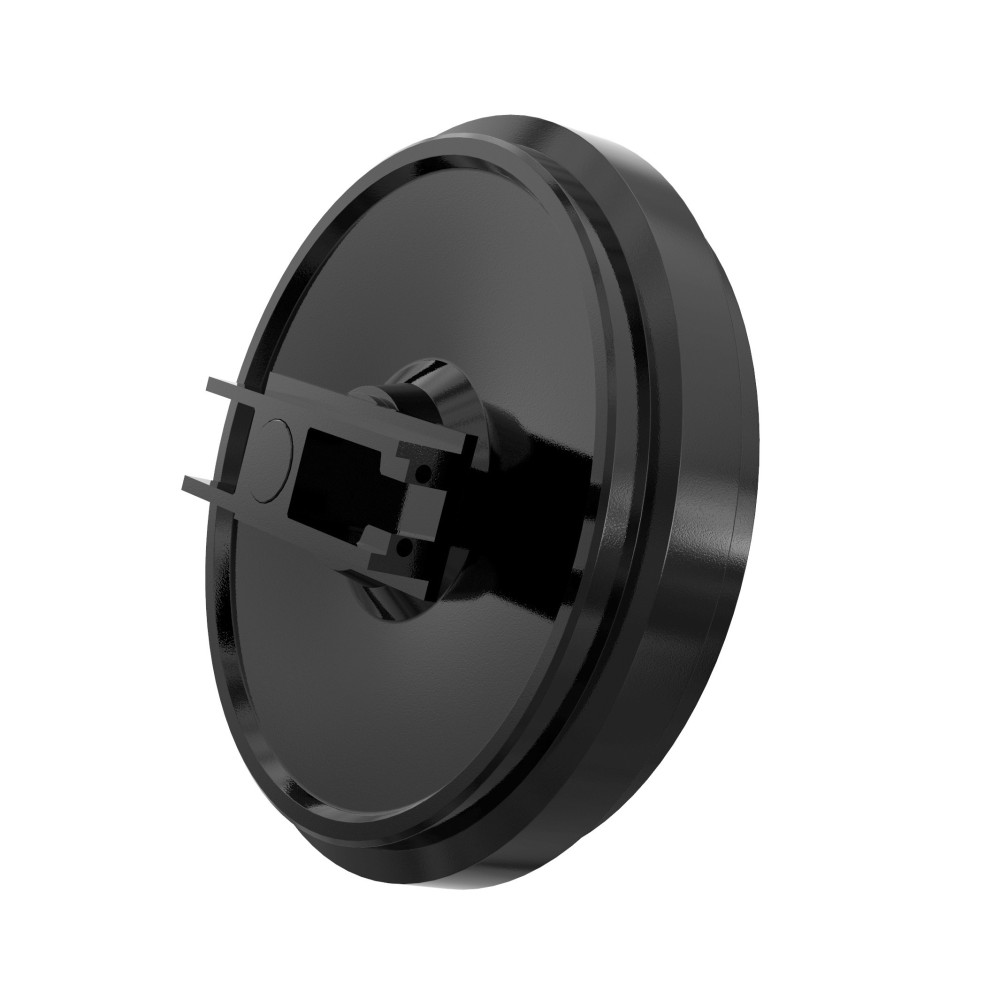

ITR Tensioning Wheel for VOLVO EC15 BXT
They are made from selected high-quality steel alloys and properly heat-treated to ensure exceptional field performance in extreme working conditions. Idler wheels ITR are assembled using state-of-the-art seals and bearing designs, produced according to the most stringent specifications in the industry. Assembly takes place on production lines with an automatic oil filling process. Idler wheels can be selected in various configurations:
- Tensioning wheel shell
- Tensioning wheel with bushing and shaft
- Tensioning wheel with brackets
- Tensioning wheel with fork
- Tensioning wheel with tensioner
Quality of ITR Tensioning Wheels
The range of tensioning wheels covers equipment from mini excavators to mining machinery from KUBOTA® K008 (machine operating weight 0.9 tons) to KOMATSU® D475 A5 (machine operating weight 101 tons). Engineering and R&D departments are located in Italy, South Korea, and China and collaborate to combine know-how, technology, and development capabilities. Engineering departments located in each production plant possess specific knowledge about locally produced components, while the headquarters of Italian Engineering coordinates all activities.
Functionality of ITR Tensioning Wheels
The function of the tensioning wheel is to support the track chain and guide it so that it is properly wound. Additionally, the tensioning wheel and tensioner work together to maintain a specified degree of track tension. The most important controllable factor in undercarriage wear is the correct tension of the chain. The correct sag for all conventional tracks is about 50mm (+-5mm). For example, a track in a machine with an 80-horsepower engine with a sag of 12mm will have a tension value of 2540 kg when measured at the track tensioner. The same machine with the recommended sag of 50 mm will have a tension value of 362 kg. An excessively tense track increases pressure, causing greater wear on the track bushings when in contact with the sprocket teeth and in the chain-tensioning wheel-roller contact. The tread hardness equal to or greater than that of the chain links, drive and support rollers ensures impact resistance and balanced durability. Material type: SCMn3A, hardening 50-55 HRC. Lifetime lubrication to minimize maintenance.
