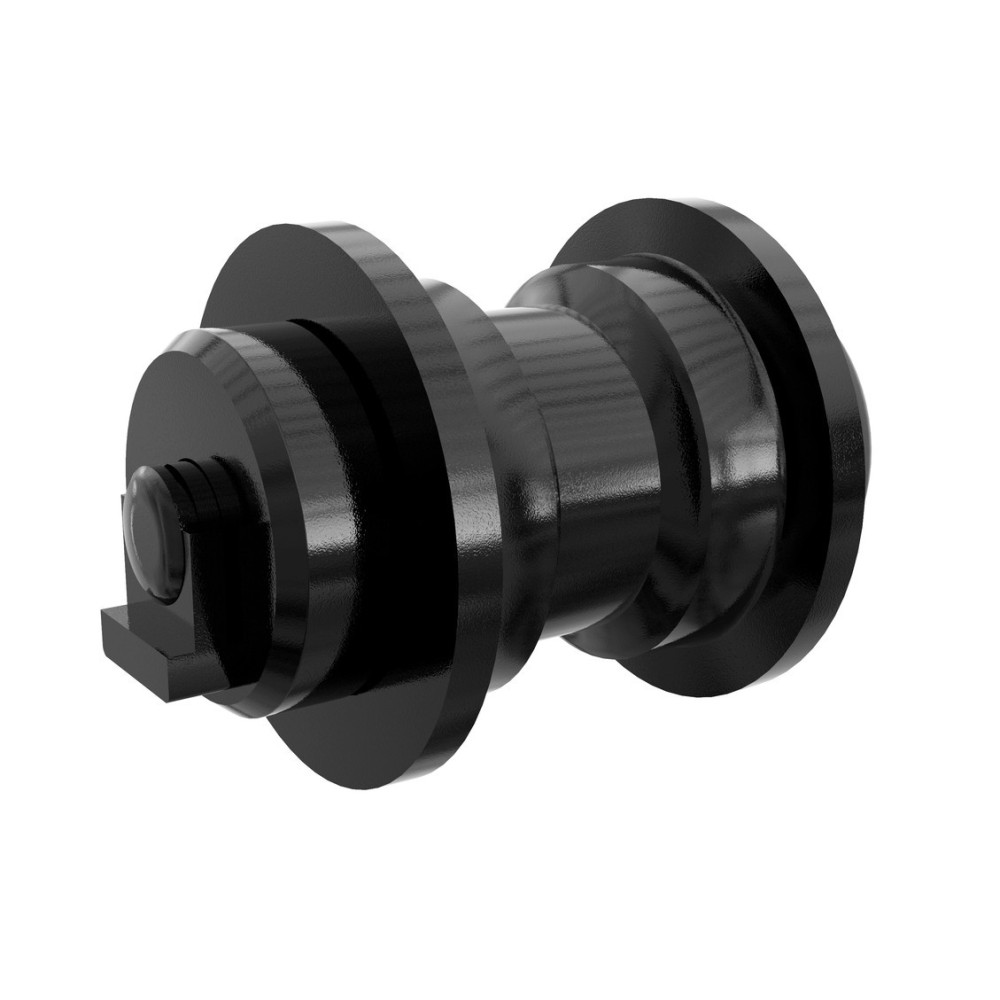

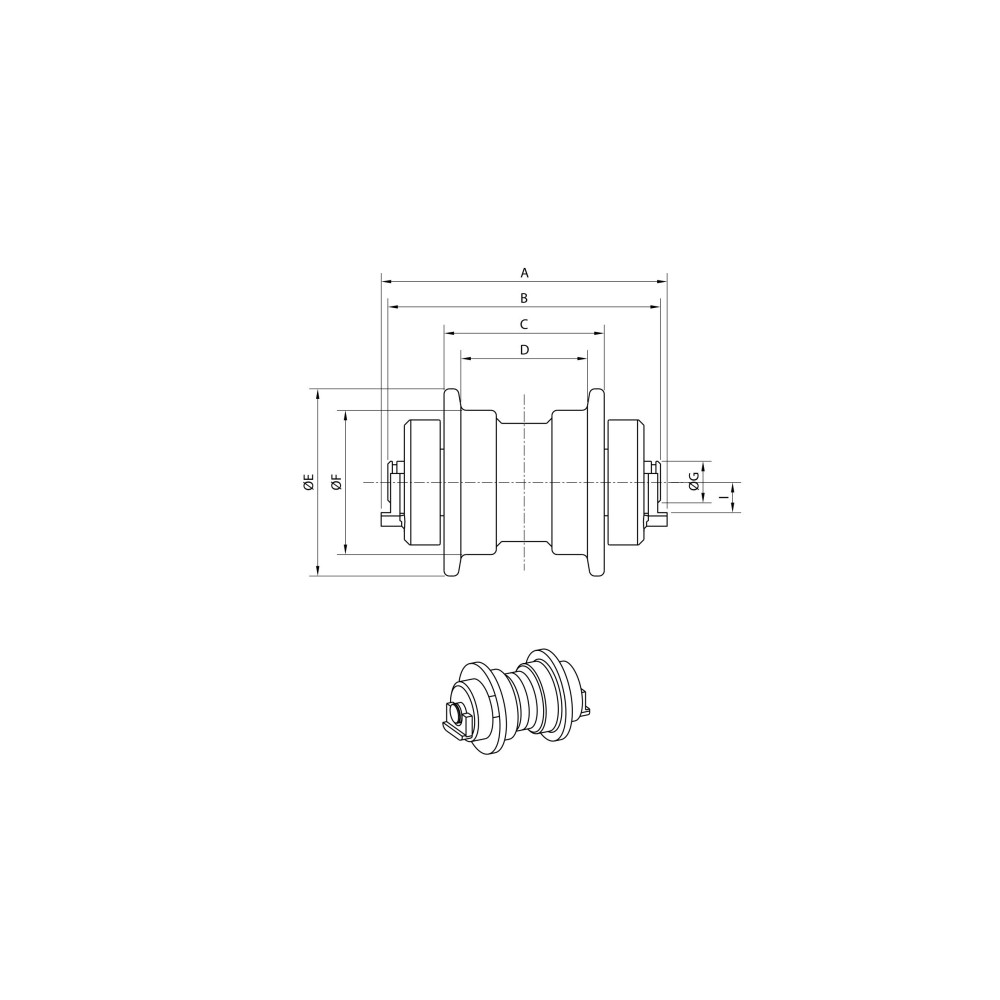

Single-edge lower travel roller for a mini excavator. Inner width between roller flanges 90 mm, guiding inner edges to the mini excavator.
Travel rollers for ITR mini excavators and compact loaders are specially designed for the toughest applications and environments. A full range of sizes and types is available for all popular brands and models. ITR rollers are forged products made from selected materials such as boron steel, high-strength castings, and top-quality components. Deep heat treatment and precision machining ensure uniformity and consistency in production. Accurate assembly, lifetime lubrication, and quality control during and after production ensure product performance and reliability. The range of ITR travel and support rollers covers everything from mini excavators to mining machinery.
Tension rollers from KOMATSU® PC05 (machine operational weight 1.4 tons) to HITACHI® EX25OO (machine operational weight 248 tons)
Single flange roller shell used in excavators.
The tread durability of the roller shell is equal to the durability of track chain links. No maintenance is required throughout the roller's lifespan.
Roller shell made of deep-hardened steel and designed to be vibration-resistant. Hardening 50 – 58 HRC.
Shafts and bearings are designed to reduce friction and wear and ensure maximum strength. Lubricated for life to require minimal maintenance.
Bronzed sleeve bearing for use in tension rollers, ensuring smooth and quiet operation. An ideal solution for precise tensioning.
The bushing design provides a large surface area for better load distribution. A soft bronze coating in the bearing protects against any fine contaminants that could damage the shaft and seals.
Duo-Cone seal. Seals the oil inlet. The Duo-Cone seal consists of two metal sealing rings and two rubber rings.
The rubber rings provide appropriate pressure on both sides of the metal sealing rings. Resistant to permanent deformation and temperature changes from -40°C to 110°C. Duo-Cone seals are designed to last several tread lifetimes, depending on individual conditions.
Oil. Oil-lubricated track rollers use oil, which cools and lubricates better than grease.
