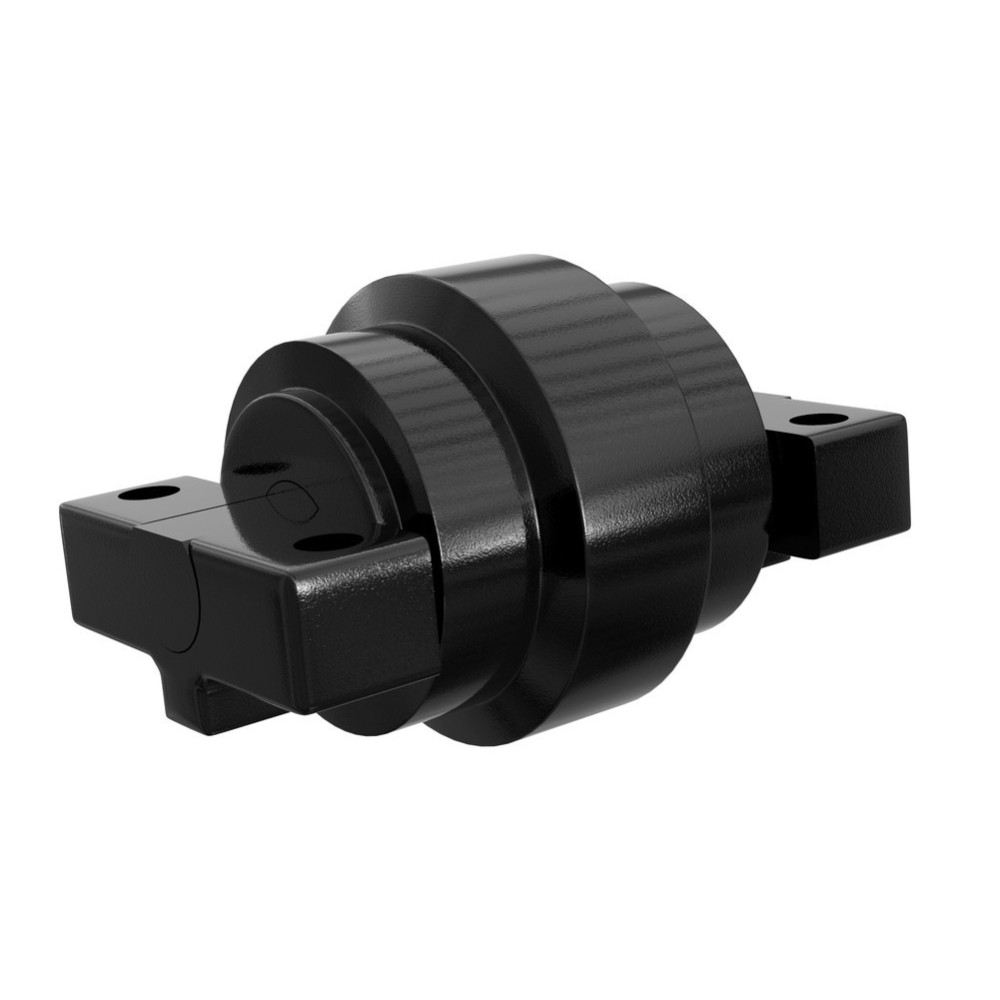

Tension rollers for mini excavators and compact loaders by ITR, ensuring stability and precise machine guidance. The internal width between the roller flanges is 23 mm, making them ideal for operation in challenging terrain conditions.
Tension rollers for mini excavators and compact loaders by ITR are high-quality products made from selected materials, such as boron steel and high-strength castings. A full range of sizes and types is available to fit all popular brands and models of machines. Precise machining and quality control guarantee reliability and long-term performance. Our offer includes tension and support rollers for various machines, from mini excavators to mining machines.
Take advantage of our professional tension rollers for handling machines with different working weights: from KOMATSU® PC05 (1.4 tons) to HITACHI® EX2500 (248 tons)
Unique tension roller jacket, specially designed for use in excavators.
The durability of the tension roller jacket tread corresponds to the durability of the track chain links. This allows users to enjoy trouble-free use of this important component without the need for maintenance.
Tension rollers made of deeply hardened steel, specifically designed to minimize vibrations. Their hardness ranges from 50 to 58 HRC, ensuring reliability and long-term performance.
The tensioning system with rollers is designed to reduce friction and wear and provide maximum shaft and bearing strength. Lubricated for the entire service life to minimize maintenance.
Bronzed slide bearing for use in tension rollers, ensuring smooth and quiet operation. An ideal solution for precise tensioning.
This sleeve design is ideal for use in tension rollers, providing a large surface area for better load distribution. The soft bronze coating in the bearing protects against any minor contaminants that may damage the shaft and seals.
Duo-Cone seal with tension rollers. Seals the oil inlet. The Duo-Cone seal with tension rollers consists of two metal sealing rings and two rubber ones.
Rubber rings, including tension rollers, ensure adequate pressure on both sides of the metal sealing rings. Resistant to permanent deformation and temperature changes from -40°C to 110°C. Duo-Cone seals are designed to withstand several tread lifespans, depending on individual conditions.
Tension rollers. Oil-lubricated, track rollers use special oil that provides better cooling and lubrication than traditional grease.
