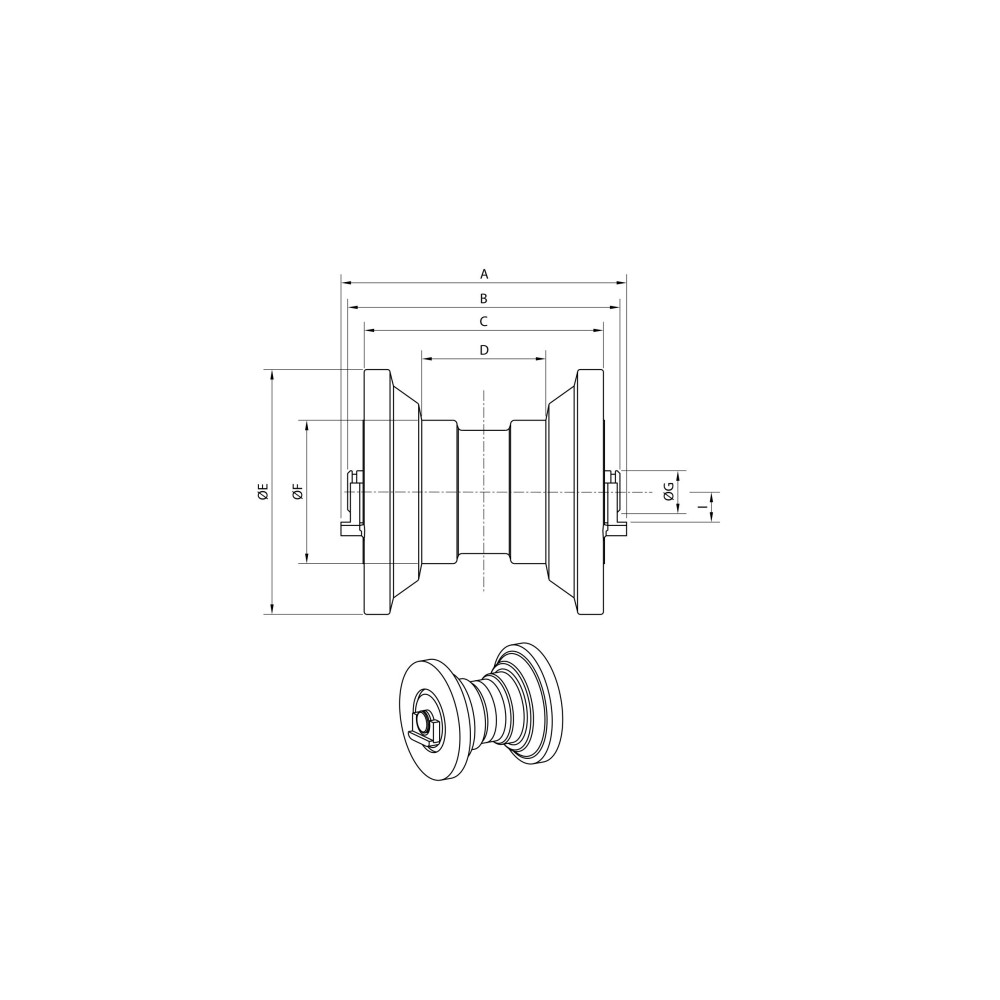

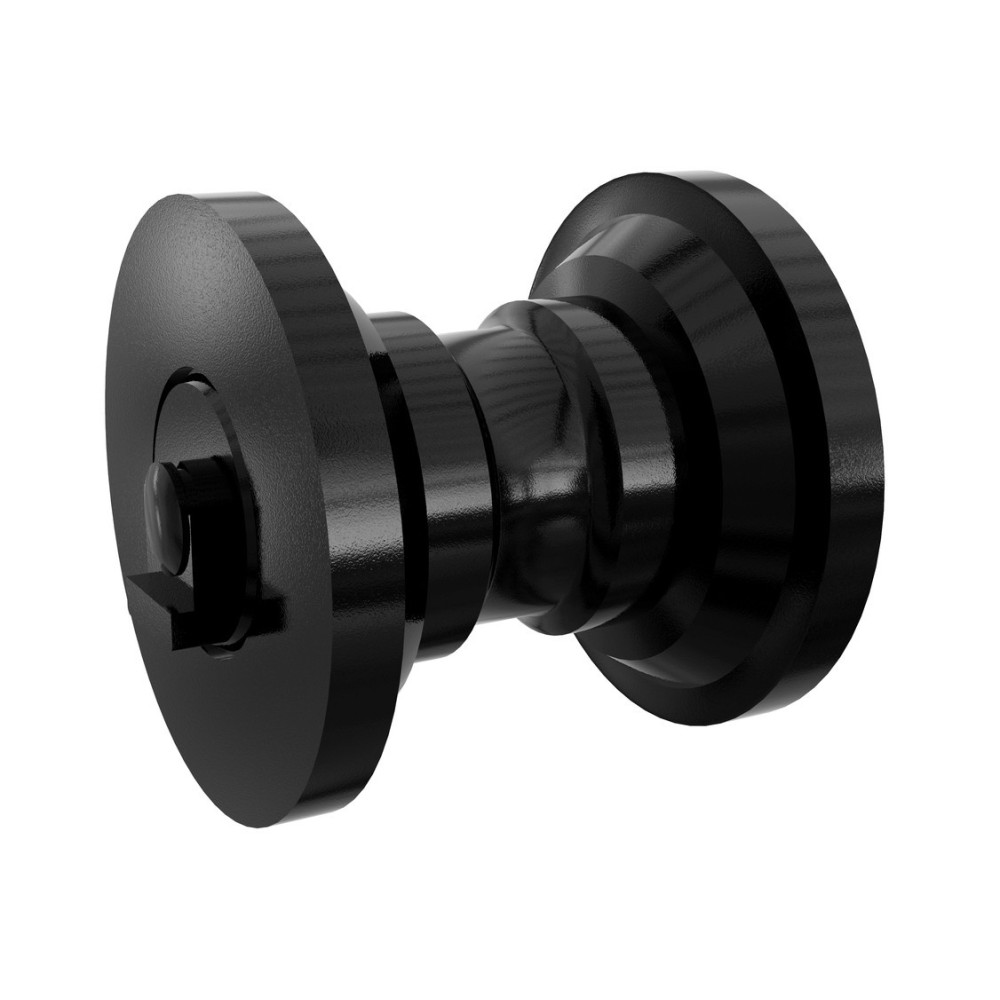

Single-edge bottom track roller for a mini excavator. The internal width between the roller flanges is 62 mm, with internal guiding edges for the mini excavator.
Track rollers for mini excavators and ITR compact loaders are specially designed for the most challenging applications and environments. A full range of sizes and types is available for all popular brands and models. ITR rollers are forged products made from selected materials such as boron steel, high-strength castings, and top-quality components. Deep heat treatment and precise machining ensure uniformity and consistency of production. Accurate assembly, lifetime lubrication, and quality control during and after production ensure product performance and reliability. The range of ITR track and support rollers covers from mini excavators to mining machines.
Tension rollers from KOMATSU® PC05 (machine operating weight 1.4 tons) to HITACHI® EX25OO (machine operating weight 248 tons)
The roller shell with a single flange used in excavators.
The durability of the roller shell tread is equal to the durability of the track chain links. No maintenance is required throughout the roller's service life.
The roller shell is made of deeply hardened steel and designed to be vibration-resistant. Hardening 50 – 58 HRC.
Shafts and bearings are designed to reduce friction and wear and ensure maximum strength. Lubricated for lifetime use to minimize maintenance.
Bronze plain bearings for use in tension rollers, providing smooth and quiet operation. An ideal solution for precise tensioning.
The bushing design provides a large surface area for better load distribution. The soft bronze coating in the bearing protects against any fine contaminants that could damage the shaft and seals.
Duo-Cone seal. Seals the oil inlet. The Duo-Cone seal consists of two metal sealing rings and two rubber ones.
Rubber rings provide appropriate pressure on both sides of the metal sealing rings. Resistant to permanent deformation and temperature changes from -40°C to 110°C. Duo-Cone seals are designed to withstand several tread lifetimes, depending on individual conditions.
Oil. Oil-lubricated track rollers use oil, which cools and lubricates better than grease.
