Track rollers, double flange (also known as double flange track rollers) are an extremely important component of the undercarriage system in crawler machines. They are commonly used in machines such as excavators, bulldozers, and construction equipment operating in challenging terrain conditions. These rollers are responsible for ensuring the stability of the track, even distribution of the machine's weight, and minimizing wear on both the machine itself and the surface it moves on.
TRACK ROLLER CATERPILLAR - CONSTRUCTION AND APPLICATION
Double flange track rollers are characterized by double flanges that are positioned on both sides of the roller. Both flanges work with the inner surface of the track links, helping to keep it on the correct path of movement, which significantly increases the stability of the entire undercarriage system. This type of roller is used in crawler machines that must handle greater loads and lateral forces, ensuring reliability in harsh working conditions.
Key features of the double flange track roller:
- Roller body: The roller is made from materials with high wear resistance, ensuring its long-lasting operation in demanding conditions.
- Flanges: Two flanges positioned on both sides of the roller provide stability and control over the movement of the track.
- Bearings: The roller contains bearings that allow it to rotate smoothly under heavy load. These bearings are sealed and lubricated, minimizing the need for maintenance.
- Seals: The roller features special seals that protect the interior of the roller from contaminants, water, and other harmful substances, ensuring the longevity of the component.
- Double flange rollers are used in machines that require high stability in challenging terrain conditions and heavy loads. Examples of applications include:
- Caterpillar bulldozers: These rollers are an ideal solution for bulldozers that must cope with significant lateral loads when working on difficult, uneven terrain.
- Caterpillar construction machines: In large construction machines that require durable components, double flange track rollers guarantee stability and optimal operation of the undercarriage.
- Machines used for earthworks: Lower rollers are commonly used in earthmoving machines that must operate on uneven surfaces, where track stability is crucial.

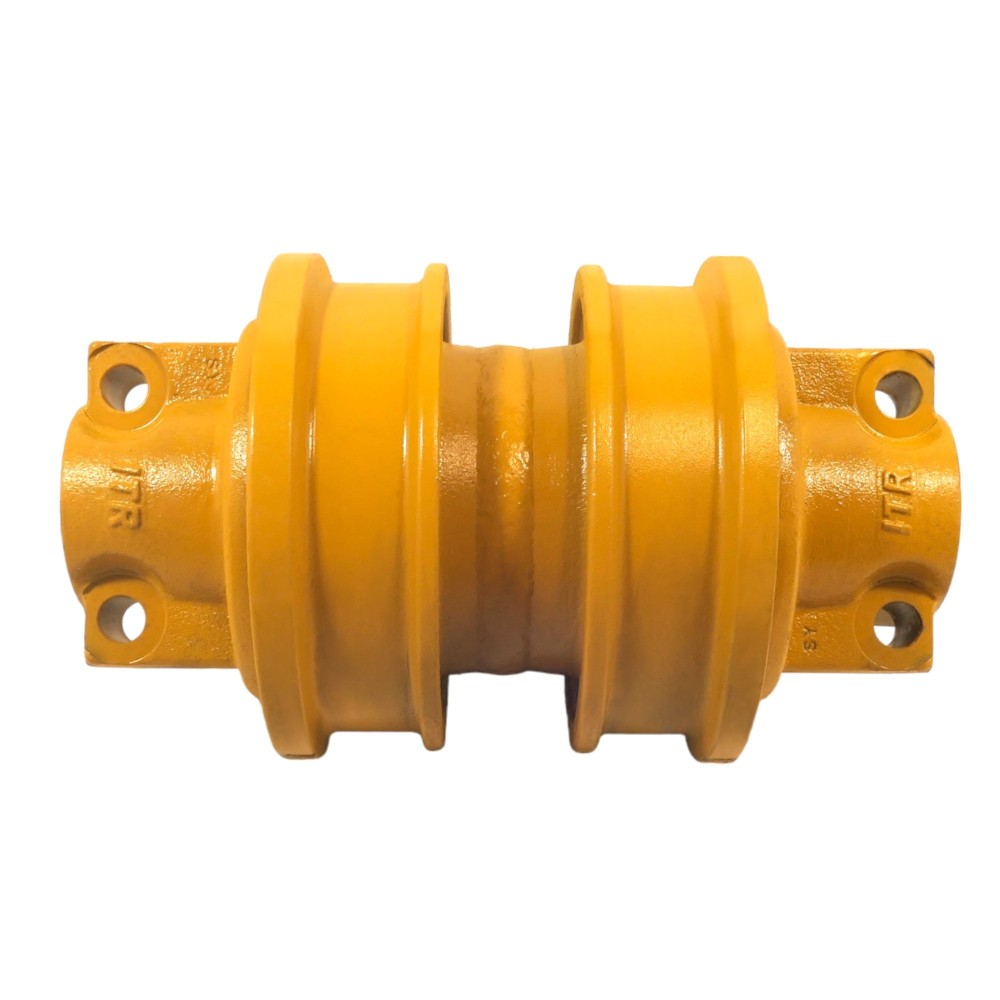

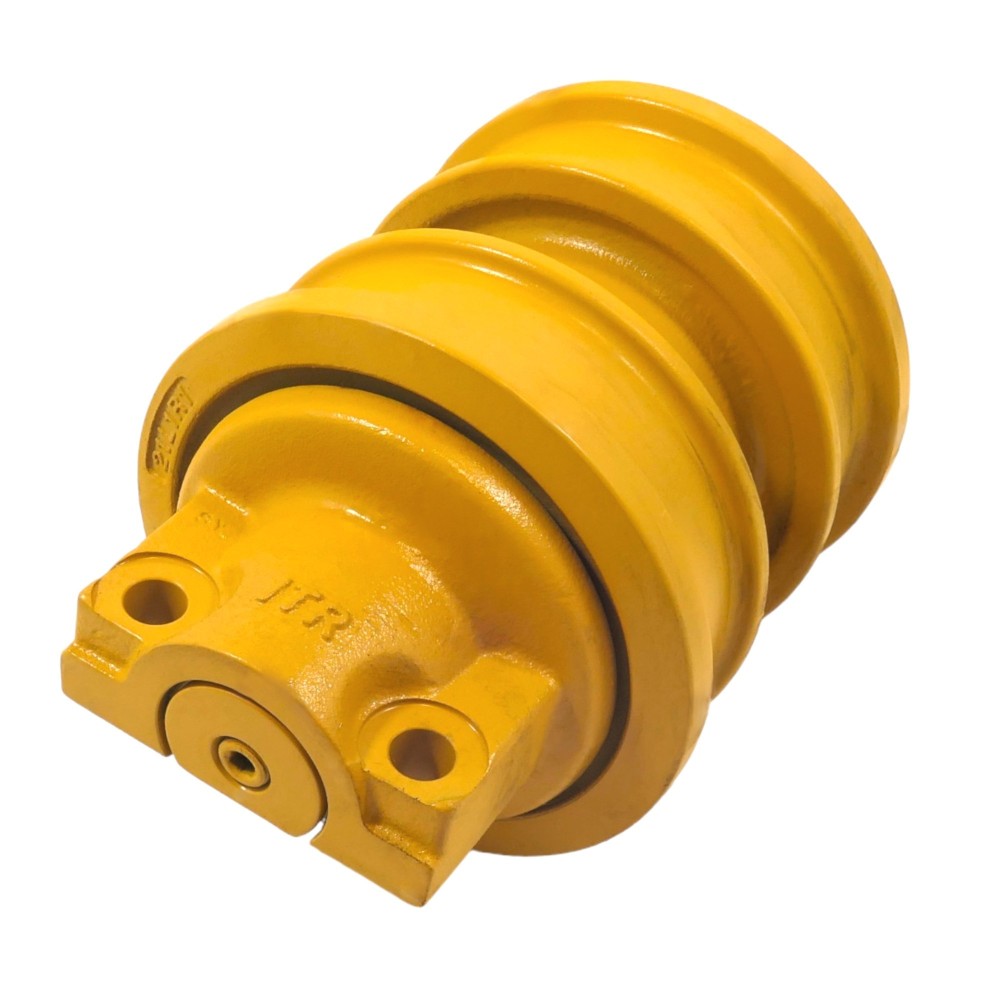

TRACK ROLLER CATERPILLAR D5N D5M D5K D4H - UG143C0T
The Caterpillar UG143C0T track roller has been designed for intensive use in harsh conditions. Made from wear-resistant materials, the roller features shafts and bearings that reduce friction and wear, thereby ensuring the longevity of the component. With high-quality hardened steel, the roller achieves a hardness of 50-58 HRC, allowing it to operate effectively in extreme working conditions.
Modern track rollers, such as the UG143C0T, are equipped with advanced technologies, including:
- Surface hardening: This process gives the roller higher wear resistance, which is crucial when working in challenging terrain conditions.
- Multi-layer seals: Thanks to modern seals, the roller is effectively protected from contaminants, moisture, and dirt, extending its lifespan.
Double flange track rollers are an essential component of the undercarriage system in crawler machines operating in difficult terrain. Their advanced design, durability, and resistance to loads make them some of the most reliable components in construction machines. The selection of the appropriate rollers for a machine should take into account the specific working conditions and type of terrain to ensure optimal performance and longevity of the undercarriage.
