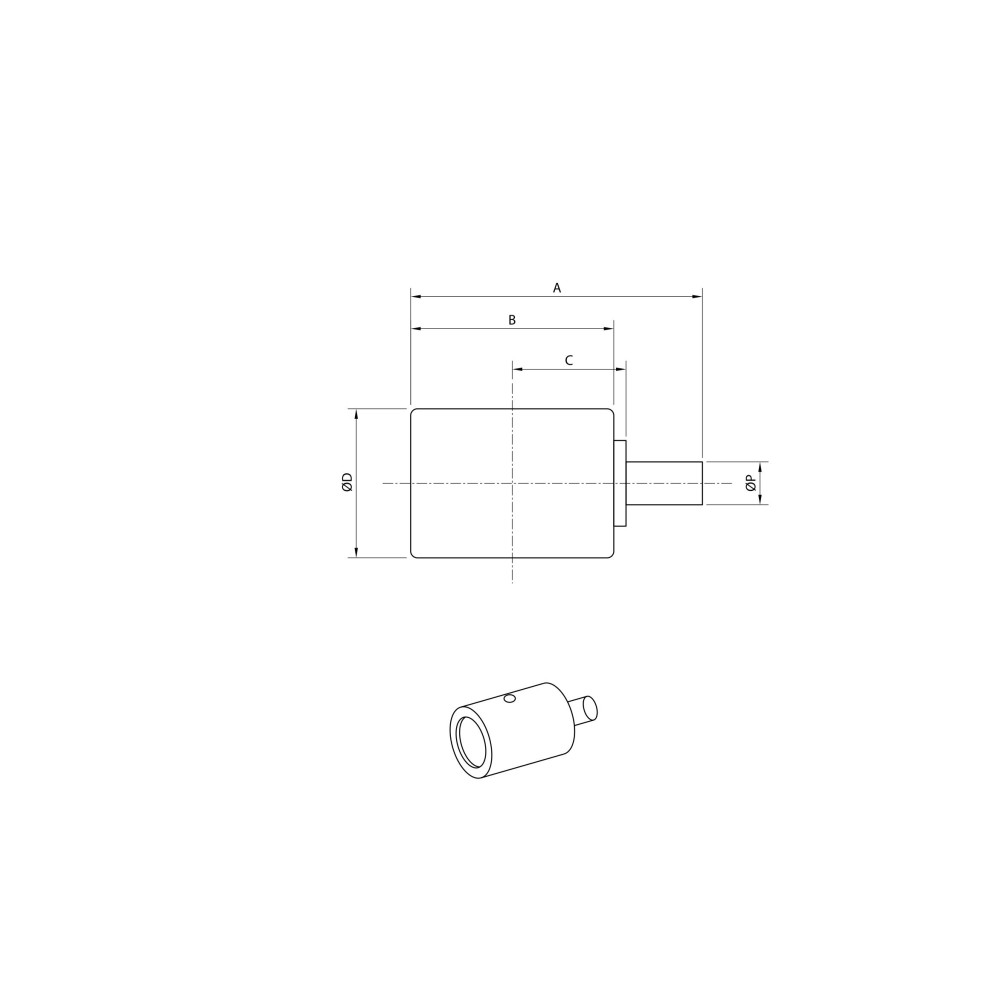

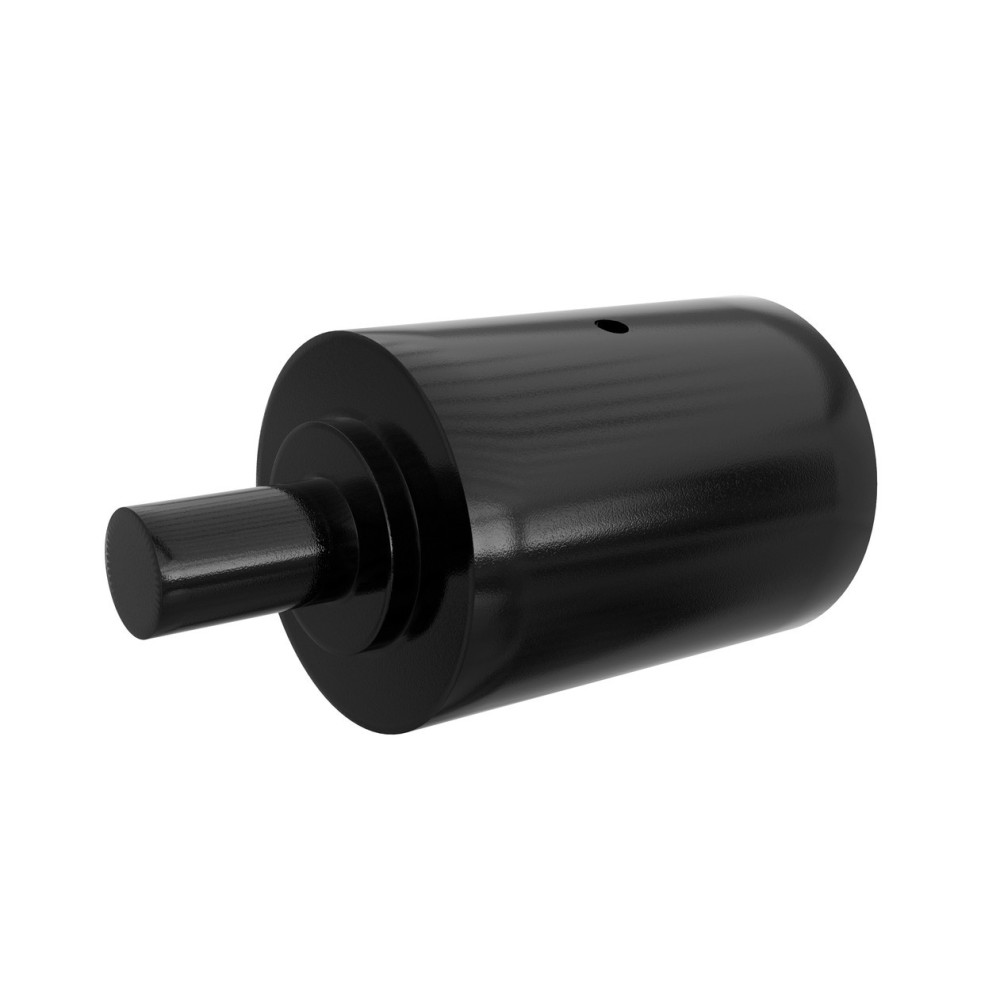

Upper support roller without mounting brackets (caps), without guiding edges Outer width between inner flanges or inner flange width of the roller: 140mm
Support rollers for ITR mini excavators are specifically designed for the toughest applications and environments.
A full range of sizes and types is available for all popular brands and models. ITR rollers are forged products made from selected materials such as boron steel, high-strength castings, and top-quality components.
Deep heat treatment and precise machining ensure uniformity and consistency of production. Accurate assembly, lifetime lubrication, and quality control during and after production ensure product efficiency and reliability.
The range of ITR track and support rollers covers everything from mini excavators to mining machinery. From KOMATSU® PC05 (machine operating weight 1.4 tons) to HITACHI® EX2500 (machine operating weight 248 tons)
ITR undercarriage components are developed, designed, and constructed by USCO engineering and R&D departments, using the latest CAD systems and in collaboration with partner universities. The ITR undercarriage product line is entirely self-managed. Starting from the purchase of raw materials, through the design of elements, mechanical processing of components, heat treatment, the entire assembly process up to final inspection. Numerous quality controls are conducted starting from the purchase of raw materials. The controls are based on knowledge and experience in metallurgical processes and material engineering.

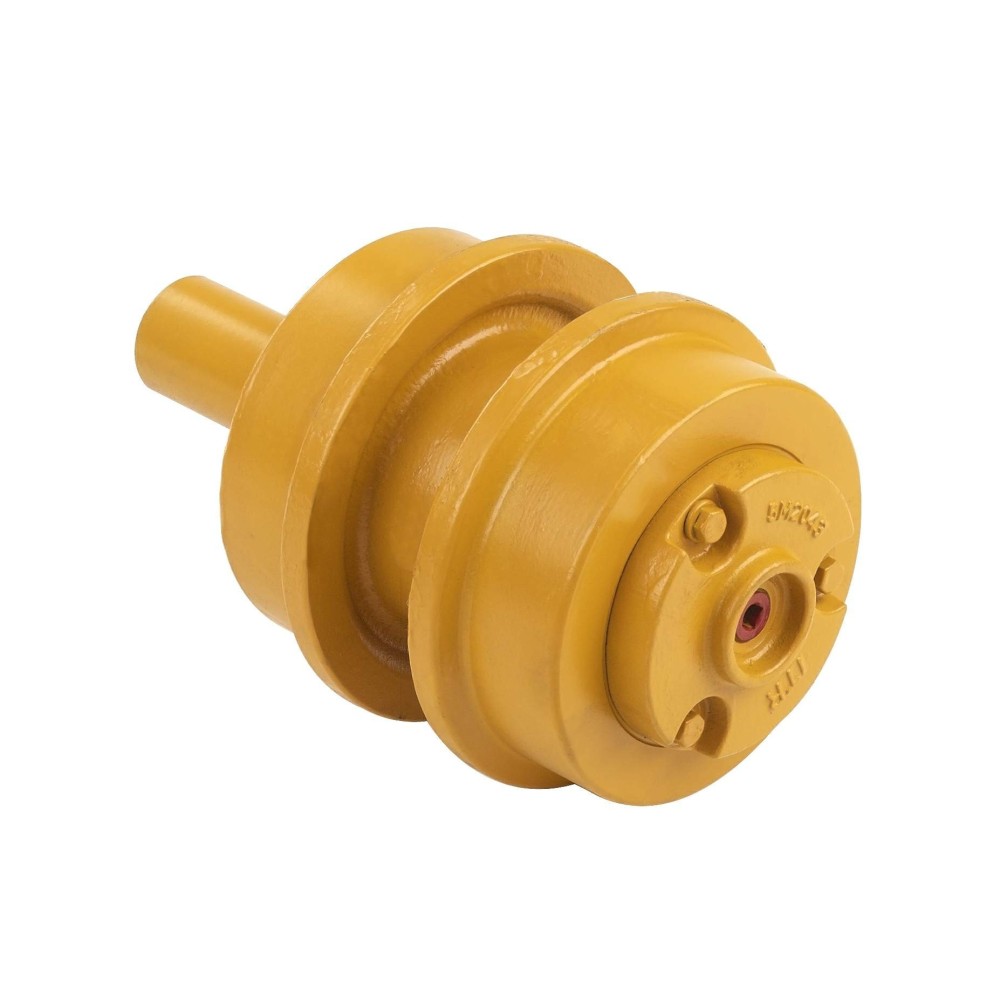

Functions of the upper support rollers: They support the track between the sprocket and the tension wheel. The durability of the roller tread is matched to the durability of the track chain links. Support rollers have induction-hardened shells to increase surface hardness, wear resistance, and fatigue strength while maintaining core properties. Values range from 50 to 58 HRC. Shafts and bearings are designed to reduce friction and wear and provide maximum strength. Lubricated for life to minimize maintenance.
Bronzed sliding bearing. The design provides a large surface area for better load distribution. The soft bronze coating in the bearing protects against any fine contaminants that could damage the shaft and seals. The Duo-Cone seal consists of two metal sealing rings and two rubber ones. The rubber rings provide appropriate pressure on both sides of the metal sealing rings. Resistant to permanent deformation and temperature changes from -40°C to 110°C. Duo-Cone seals are designed to withstand several tread lifetimes, depending on individual conditions.
The ITR undercarriage product line offers the most complete range available on the market, covering standard applications for excavators and bulldozers along with a full range of undercarriage components for asphalt, drilling, and logging machines. Production flexibility and design experience also put the ITR undercarriage line in a good position to deliver custom-made products for special applications. Tractors, crawler dozers, mini excavators, compact track loaders, forestry machines, hydraulic excavators, logging machines, cranes, pipe layers, harvesters, asphalt layers, mobile crushers.
