Drive wheel gear ring for screwing. For a chain with a pitch of
72, number of teeth
11Production of ITR sprockets and segments for mini excavators is suitable for a wide selection of track-driven machine models.
From mini excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated, and are generally used for excavators or other machines with undercarriages working in similar applications.

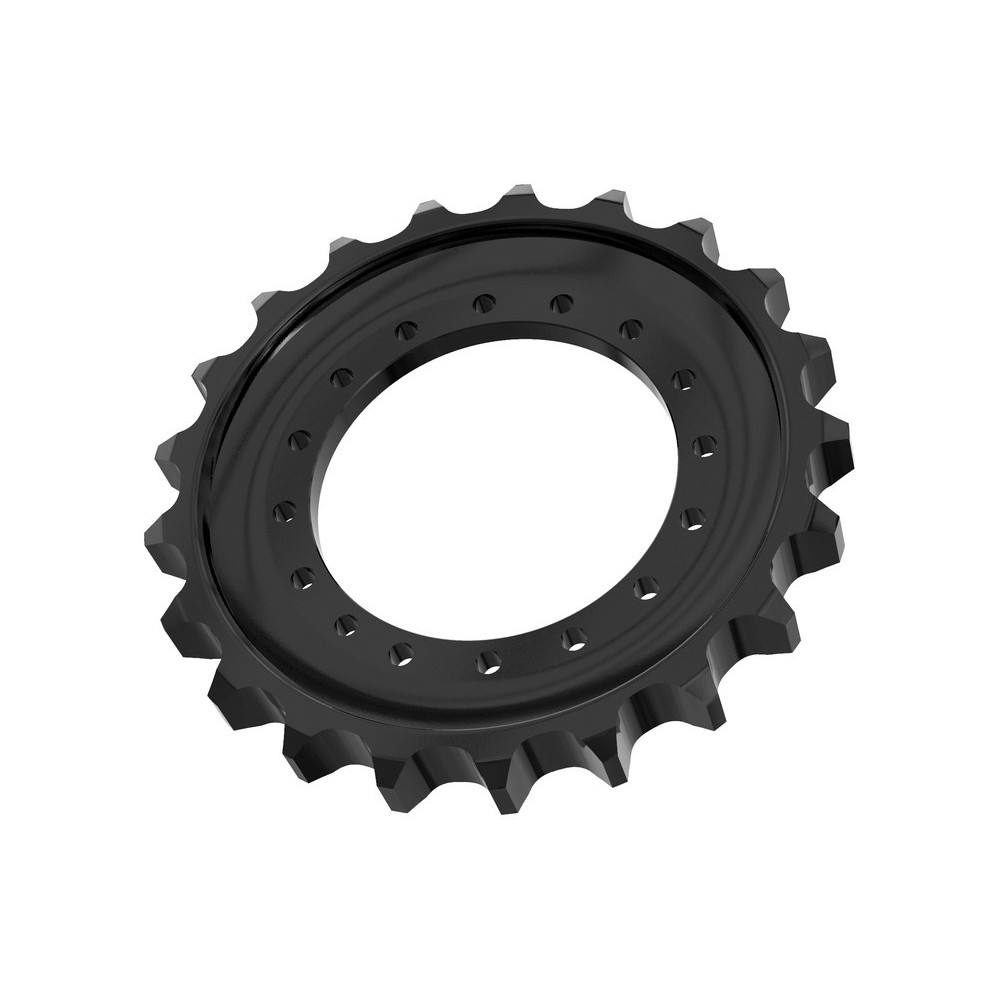

Drive sprocket ITR for KOMATSU PC02
The range of ITR drive wheels includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive sprocket ITR - Functionality
Bolt mounting. Tightening method in the machine's user manual. It is important to obtain information about the sprocket bolt installation and torque specifications.
Functions: Transmitting drive loads from the main gearbox to the track via bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to fit precisely into the bushings. Strictly controlled production processes to ensure proper equipment mounting. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - moving wheels to opposite sides of the machine can extend the sprocket's lifespan. Drive wheel rings are forged or cast from deep-hardened steel, which provides nearly twice the hardening depth compared to ordinary steel. Material SCMn3A. Hardening 50 – 55 HRC.
Production of ITR sprockets and segments for mini excavators is suitable for a wide selection of track-driven machine models.
