Drive wheel gear ring for bolting. For chain with a pitch of
140 and number of teeth
521The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of tracked machine models.
From mini excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated and are generally used for excavators or other machines with undercarriages working in similar applications.

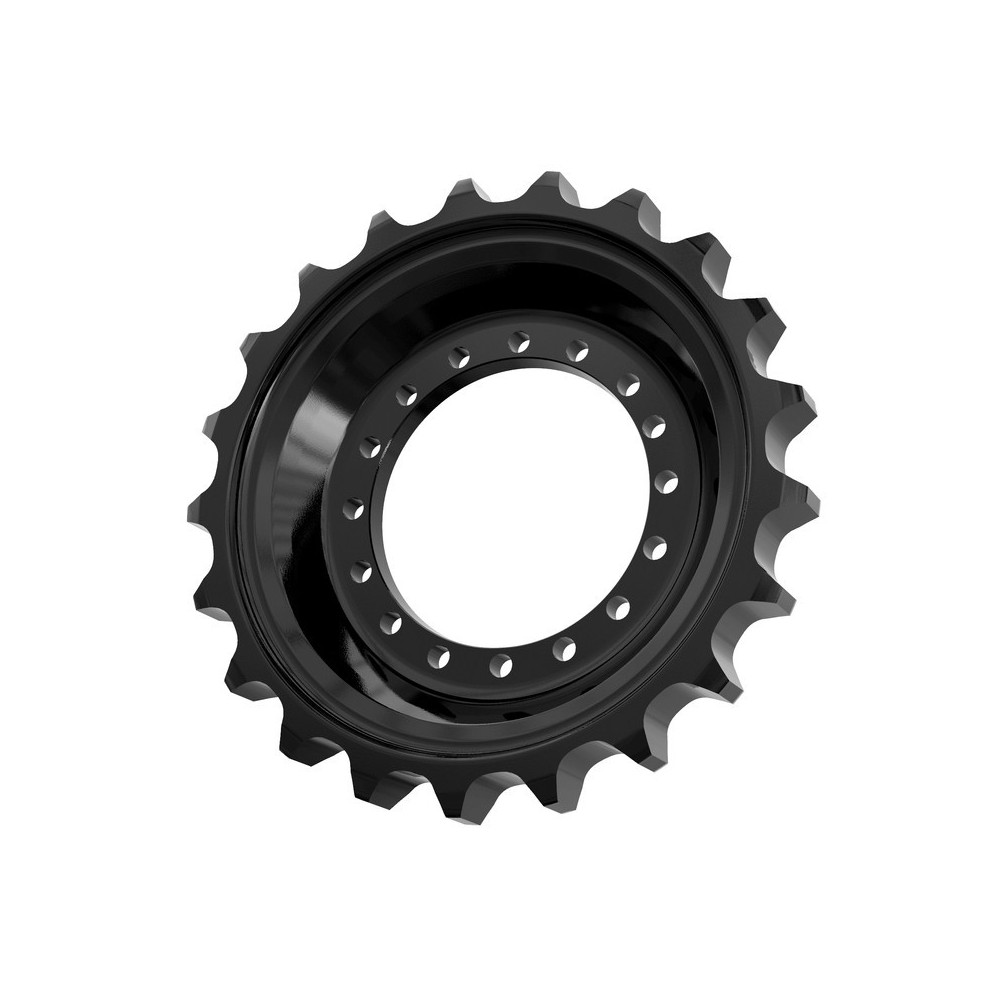

Drive wheels ITR for PEL JOB EB706 C
The range of ITR drive wheels includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive wheels ITR - Functionality
Bolt mounting. Tightening method in the machine's operating manual. It's important to obtain information about the sprocket bolt installation and torque specifications.
Functions: Transferring drive loads from the main transmission to the track through bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to fit precisely with the bushings. Strictly controlled production processes ensure correct equipment assembly. Advantages of bolted sprockets: Limited maintenance and reduced downtime. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase the sprocket's lifespan. Drive wheel rings are forged or cast from deep-hardened steel, which provides nearly twice the hardening depth compared to regular steel. Material SCMn3A. Hardening 50 – 55 HRC.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of tracked machine models.
