Drive wheel gear ring for screwing. For a chain with a pitch of
101, number of teeth
221.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of tracked machine models.
From mini excavators to mining machines. Sprockets are produced through a casting process, while segments are manufactured by forging.
Sprockets are cast products, machined and heat-treated, generally used for excavators or other machines with chassis working in similar applications.

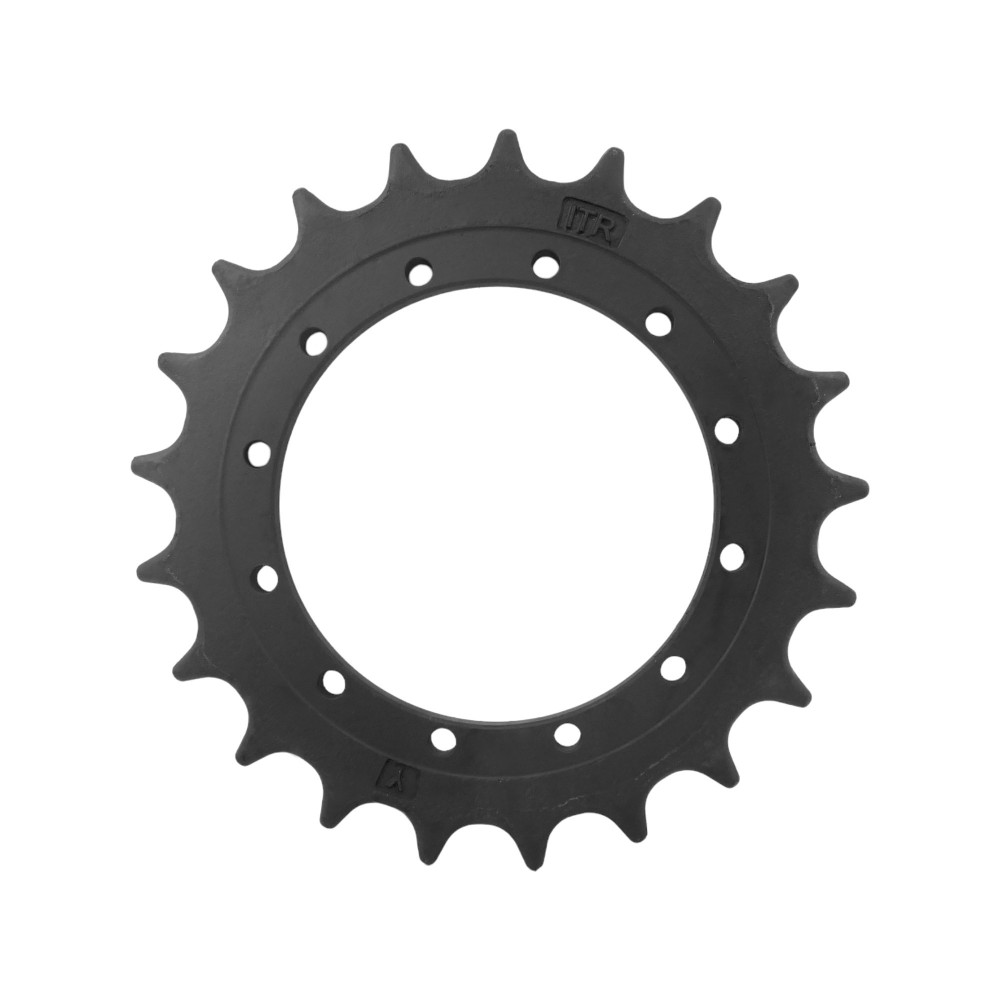

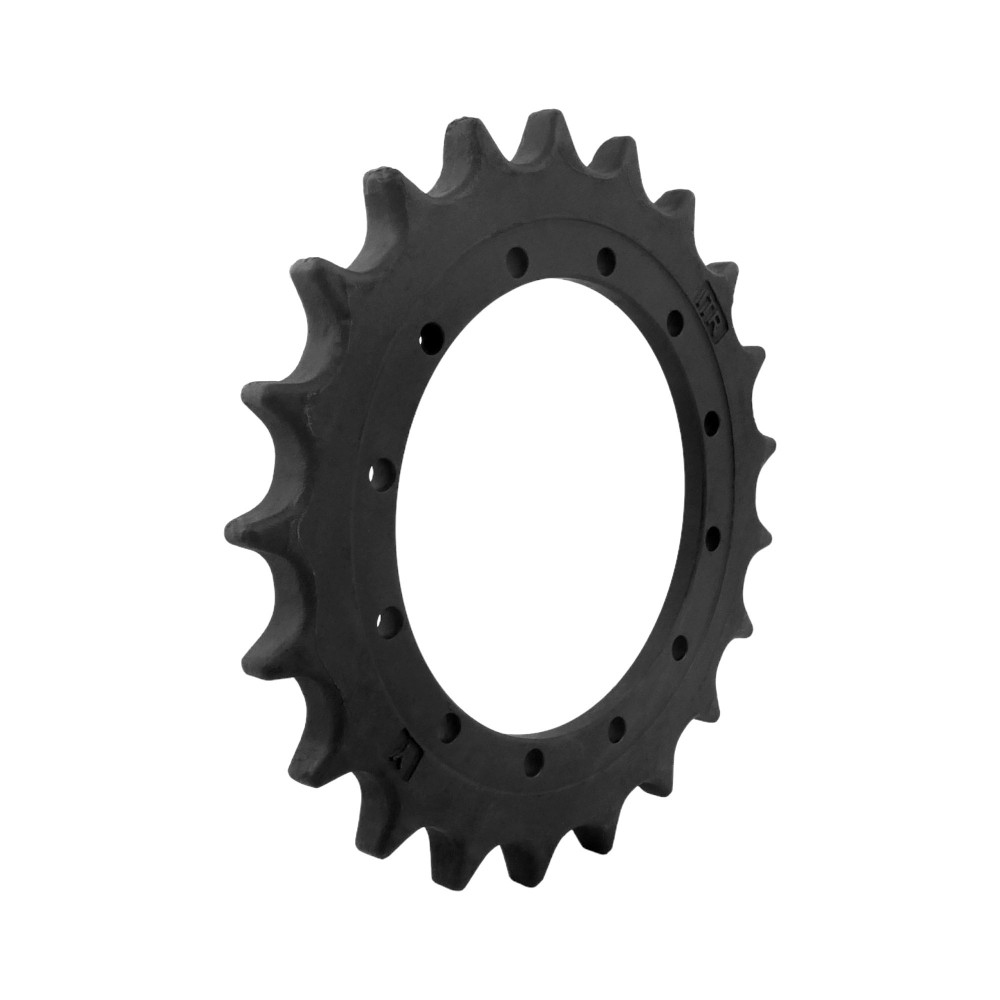

Drive wheels ITR for SCHAEFF HR14 HR16
The range of ITR drive wheels includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive wheels ITR - Functionality
Bolted mounting. Tightening method in the machine's user manual. It is important to obtain information about the sprocket bolt assembly and torque specifications.
Functions: Transferring drive loads from the main gearbox to the track via bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to precisely fit the bushings. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtime. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase the sprocket's lifespan. Drive wheel rings are forged or cast from deeply hardened steel, providing nearly twice the hardening depth compared to regular steel. Material SCMn3A. Hardening 50 - 55 HRC.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of tracked machine models.
