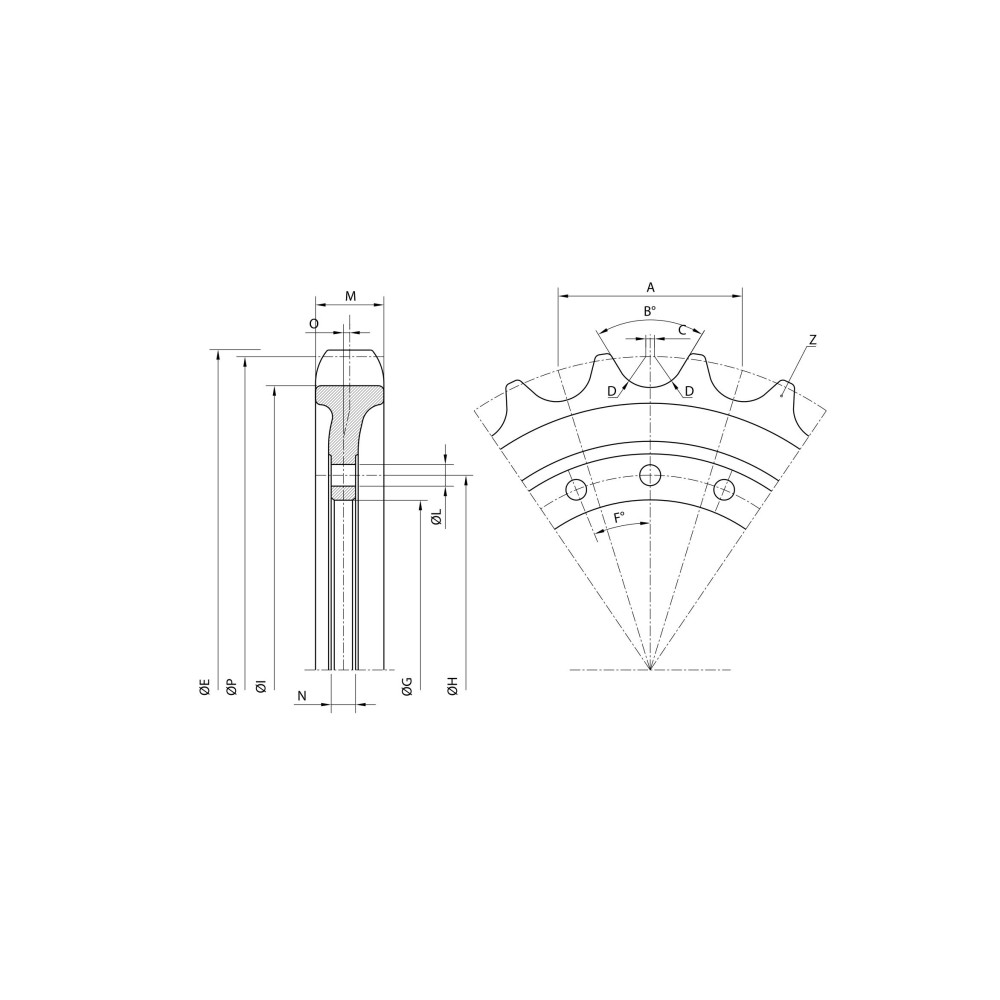

Drive sprocket ring gear for bolting. For a chain with a pitch of
90, number of teeth
13.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of models of track-driven machines.
From mini excavators to mining machines. The sprockets are produced through casting, while the segments are manufactured by forging.
Sprockets are cast products, machined and heat-treated, and are generally used for excavators or other machines with undercarriages working in similar applications.

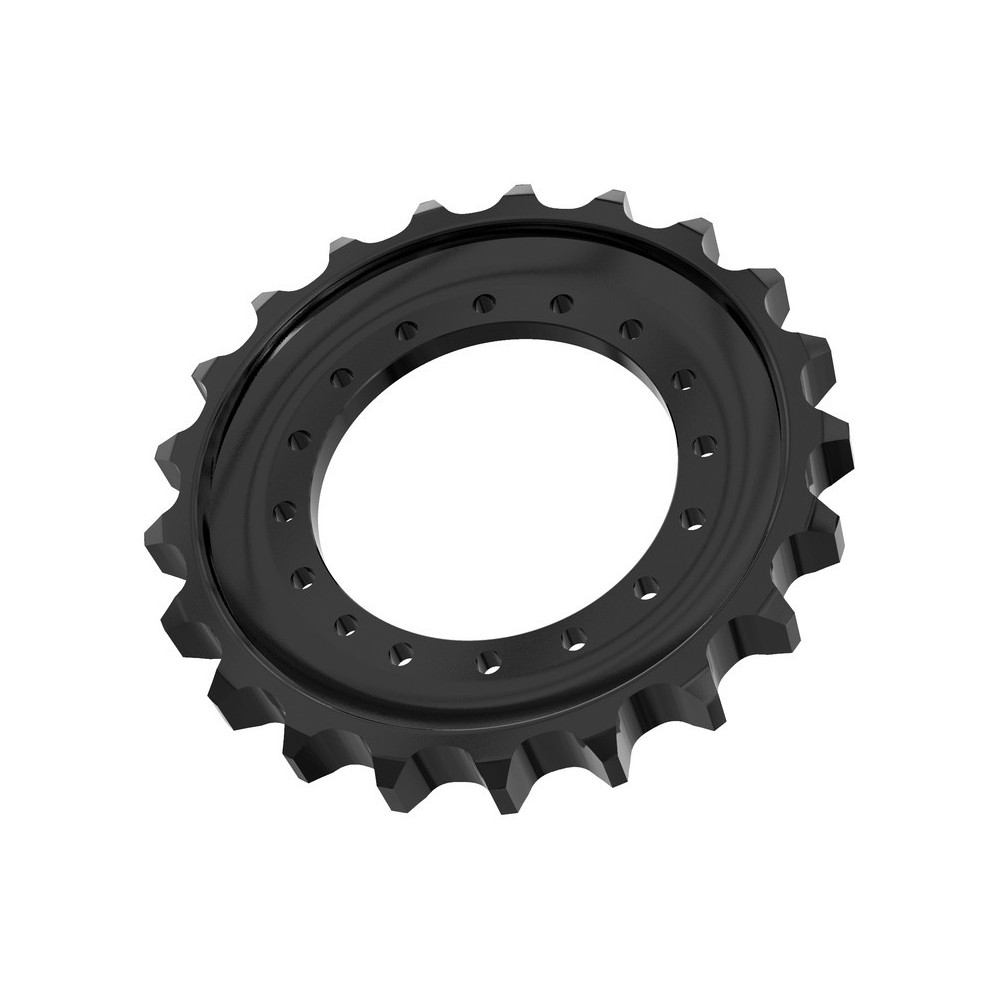

Drive sprocket ITR for YANMAR C30 R
The range of ITR drive wheels includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive sprocket ITR - Functionality
Bolting. Tightening method in the machine's user manual. It is important to obtain information about the installation of the sprocket bolt and torque specifications.
Functions: Transfer of drive loads from the main gearbox to the track via bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to fit precisely with the bushings. Strictly controlled production processes to ensure proper equipment installation. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - moving the wheels to opposite sides of the machine can increase the lifespan of the sprocket. Drive sprocket rings are forged or cast from deeply hardened steel, which provides nearly twice the hardening depth of ordinary steel. Material SCMn3A. Hardness 50 – 55 HRC.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of models of track-driven machines.
