Ведуче колесо (зірочка) BOBCAT T140 SSL

The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of track-driven machine models.

From mini excavators to mining machines. Sprockets are produced through a casting process, while segments are manufactured by forging.

The sprockets are cast products, machined and heat-treated, and are generally used for excavators or other machines with undercarriages operating in similar applications.

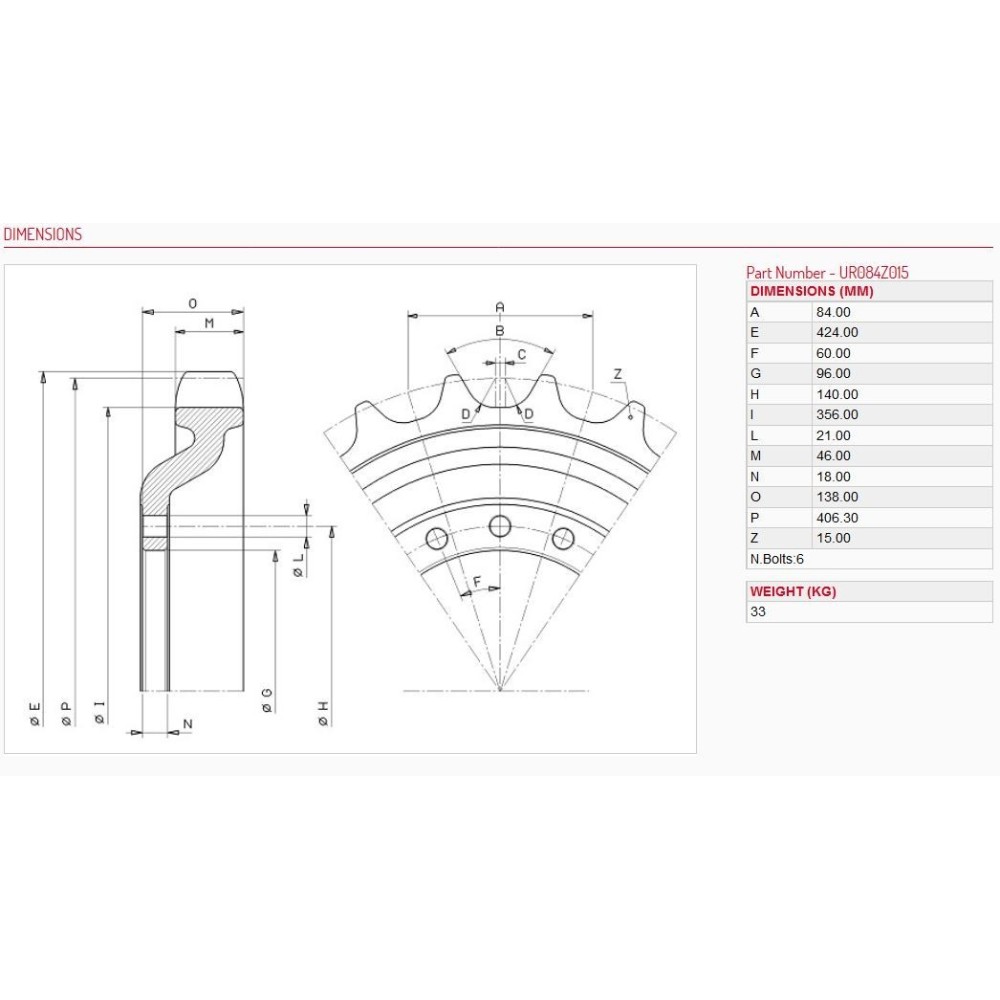

Drive Sprockets ITR for BOBCAT T140 SSL

The range of ITR drive sprockets includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).

Drive Sprockets ITR - Functionality

Bolt mounting. The method of tightening is in the machine's user manual. It is important to obtain information about the installation of the sprocket bolt and torque specifications.

Functions: Transferring drive loads from the main gearbox to the track via bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are manufactured to fit precisely with the bushings. Strictly controlled production processes to ensure proper equipment installation. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring the sprockets to the opposite sides of the machine can increase the sprocket's lifespan. Sprocket rings are forged or cast from deep hardened steel, which provides nearly twice the hardening depth than regular steel. Material SCMn3A. Hardening 50 – 55 HRC.

The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of track-driven machine models.
