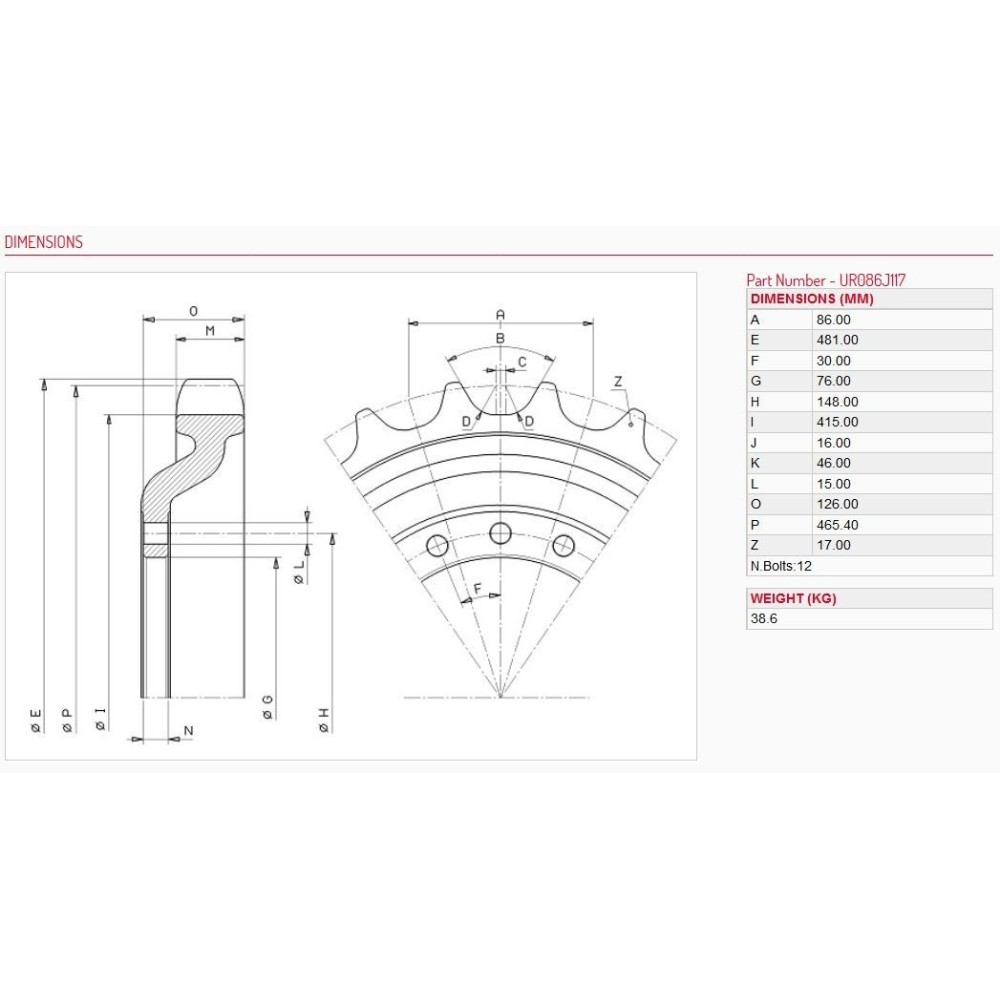

Drive wheel gear ring for screwing. For a chain with a pitch of
86, number of teeth
117.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of models of tracked machines.
From mini excavators to mining machines. Sprockets are produced through a casting process, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated, and are generally used for excavators or other machines with chassis working in similar applications.
Drive Wheels ITR for JCB 150 T
The range of ITR drive wheels includes equipment from JCB® 8008 (machine working weight 0.95 tons) to KOMATSU® PC 1250 (machine working weight 110 tons).
Drive Wheels ITR - Functionality
Bolt mounting. Tightening method in the machine's operating manual. It is important to obtain information about the installation of the sprocket bolt and torque specifications.
Functions: Transferring drive loads from the main transmission to the track through bushings. Durability equal to at least one side of the bushing, crack resistance. Sprockets are produced to fit the bushings precisely. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase sprocket lifespan. Drive wheel rings are forged or cast from deep-hardened steel, which provides nearly double the hardening depth compared to ordinary steel. Material SCMn3A. Hardening 50 – 55 HRC.
