Drive Sprocket Ring Gear for Screwing. For a chain with a pitch of
101 and a number of teeth
423.
The production of ITR sprockets and segments for mini excavators is suitable for a wide range of tracked machine models.
From mini excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated, generally used for excavators or other machines with undercarriages working in similar applications.

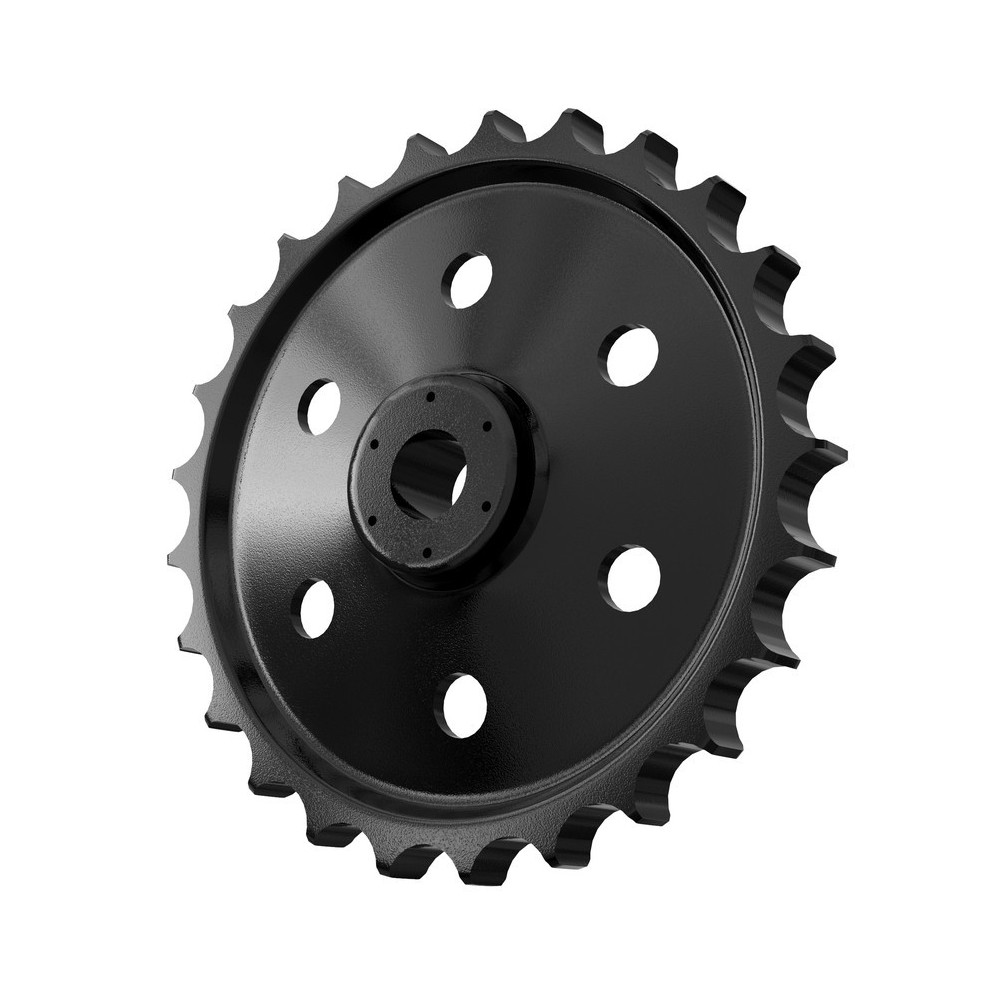

Drive Sprockets ITR for KUBOTA KH026
The ITR drive sprocket range includes equipment from JCB® 8008 (machine working weight 0.95 tons) to KOMATSU® PC 1250 (machine working weight 110 tons).
Drive Sprockets ITR - Functionality
Bolt fastening. The tightening method is in the machine's operating manual. It is important to obtain information on the sprocket bolt installation and torque specifications.
Functions: Transferring drive loads from the main gearbox to the track through bushings. Durability equal to at least one side of the bushing, crack resistance. Sprockets are manufactured to fit precisely with the bushings. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring sprockets to the opposite sides of the machine can increase sprocket lifespan. Sprocket rings are forged or cast from deeply hardened steel, providing nearly twice the hardening depth of regular steel. Material SCMn3A. Hardening 50 – 55 HRC.
The production of ITR sprockets and segments for mini excavators is suitable for a wide range of tracked machine models.
