Drive wheel gear ring for screwing. For chain with a pitch of 101 number of teeth 523
The production of sprockets and ITR segments for mini excavators is suitable for a wide selection of models of tracked machines.
From mini excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined and heat-treated, and generally used for excavators or other machines with undercarriages working in similar applications.

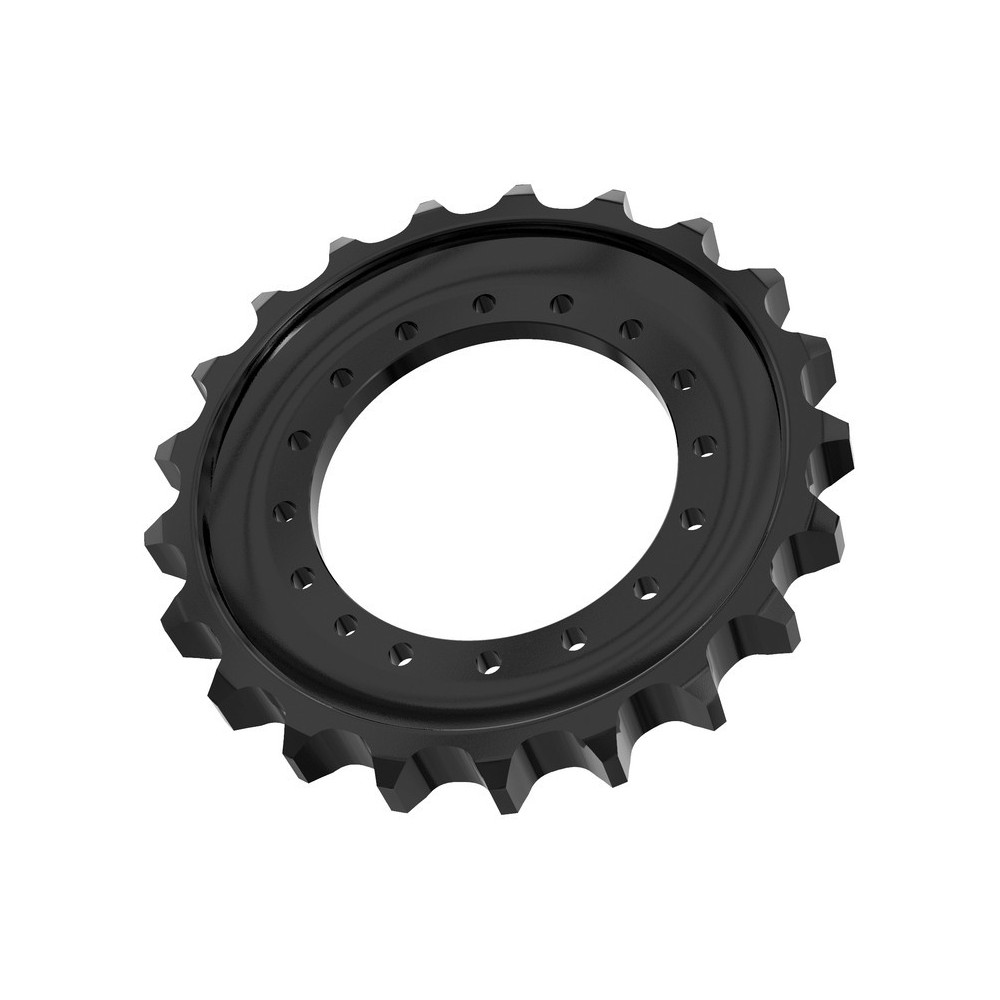

Drive wheels ITR for TAKEUCHI TB138 FR UR101Z523
The range of ITR drive wheels includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive wheels ITR - Functionality
Bolt mounting. Tightening method in the machine's operating manual. It is important to obtain information about the sprocket bolt installation and torque specifications.
Functions: Transferring drive loads from the main gearbox to the track via bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to fit the bushings precisely. Strictly controlled production processes to ensure proper equipment installation. Benefits of bolt-on sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase the lifespan of the sprocket. Drive wheel rings are forged or cast from deep-hardened steel, which provides nearly twice the hardening depth of regular steel. Material SCMn3A. Hardening 50 – 55 HRC.
The production of sprockets and ITR segments for mini excavators is suitable for a wide selection of models of tracked machines.
