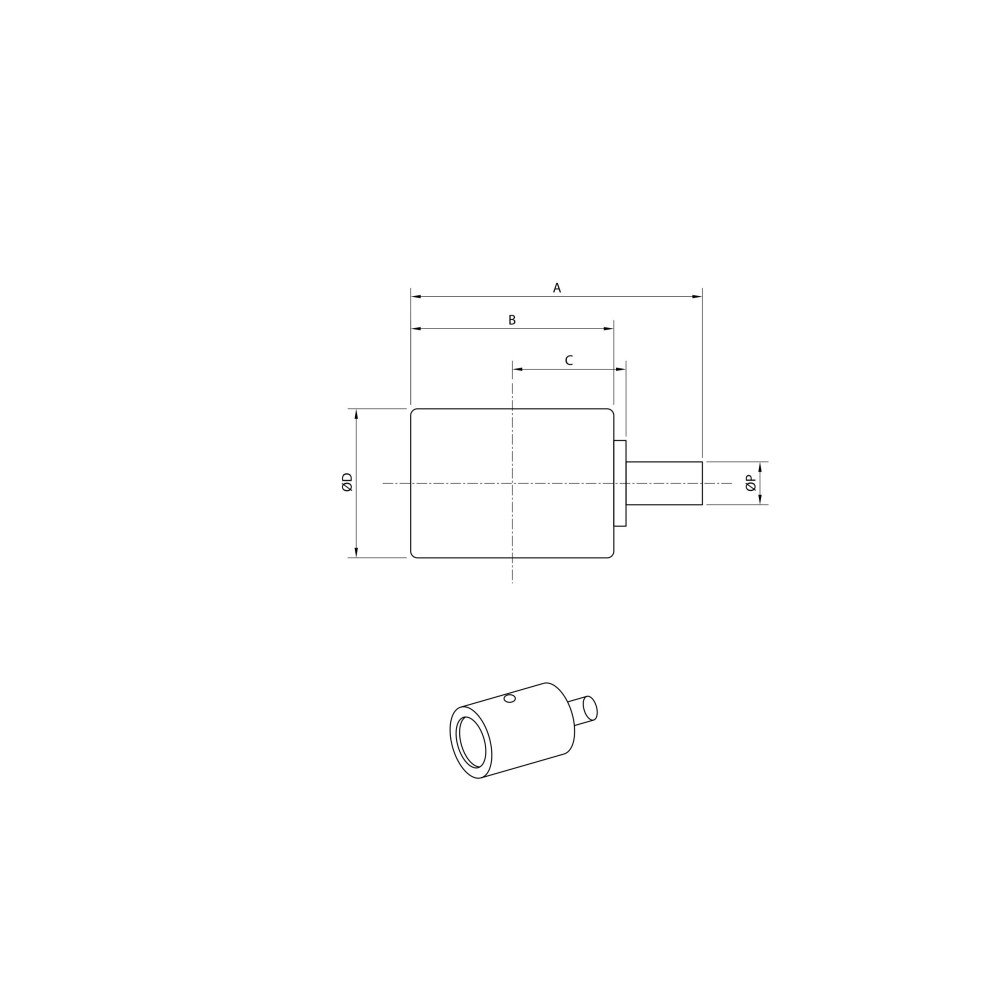

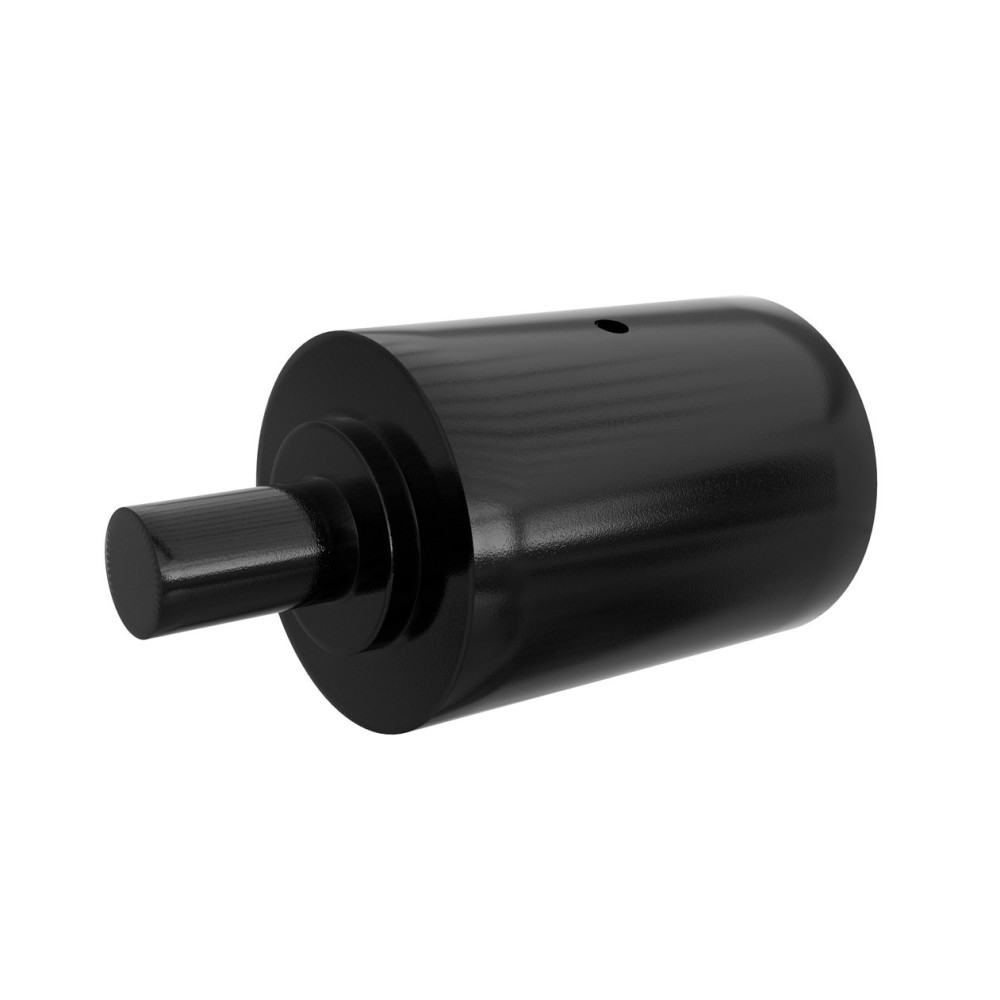

Upper support roller without mounting brackets (cap), without guide edges External width between internal flanges or internal flange width of the roller: 110mmm
Support rollers for ITR mini-excavators are specially designed for the toughest applications and environments.
A full range of sizes and types is available for all popular brands and models. ITR rollers are forged products, made from selected materials such as boron steel, high-strength castings, and top-quality components.
Deep heat treatment and precise machining ensure uniformity and consistency in production. Accurate assembly, lifetime lubrication, and quality control during and after production ensure product performance and reliability.
The range of ITR track and support rollers covers from mini-excavators to mining machines, from KOMATSU® PC05 (machine operating weight 1.4 tons) to HITACHI® EX25OO (machine operating weight 248 tons).
ITR undercarriage components are developed, designed, and constructed by USCO engineering and R&D departments, using the latest CAD systems and in collaboration with partner universities. The ITR undercarriage product line is entirely self-managed. Starting from raw material procurement, through component design, mechanical processing, heat treatment, throughout the entire assembly process to final inspection. Numerous quality checks are conducted starting from raw material procurement. The inspections are based on knowledge and experience in metallurgy and material engineering processes.
Functions of upper support rollers: They support the track, between the sprocket and the tension wheel. The durability of the roller tread is matched to the durability of the track chain links. Support rollers have induction-hardened shells to increase surface hardness, wear resistance, and fatigue strength while maintaining core properties. Values range from 50 – 58 HRC. Shafts and bearings are designed to reduce friction and wear and ensure maximum strength. Lubricated for the entire service life for minimal maintenance.
Bronze sliding bearing. The design provides a large surface area for better load distribution. The soft bronze coating in the bearing protects against any small contaminants that could damage the shaft and seals. The Duo-Cone seal consists of two metal sealing rings and two rubber ones. The rubber rings provide proper pressure on both sides of the metal sealing rings. Resistant to permanent deformation and temperature changes from -40°C to 110°C. The Duo-Cone seals are designed to withstand several tread lifespans, depending on individual conditions.
The ITR undercarriage product line offers the most complete range available on the market, which includes standard applications for excavators and bulldozers along with a full range of undercarriage components for asphalt, drilling, and logging machines. Production flexibility and design experience also place the ITR undercarriage line in a good position to provide "custom-made" products for special applications. Tractors, crawler tractors, mini-excavators, compact track loaders, forest machines, hydraulic excavators, felling machines, cranes, pipe layers, harvesters, asphalt pavers, mobile crushers...
